Best Solutions in MEP

Plumbing Works Plumbing works are executed in three main stages to ensure a proper supply of clean water and efficient waste disposal.1. Underground & Drainage Phase (First Fix)This stage happens before pouring the concrete floor slab and foundation.

• Sewer Line Installation: Heavy-duty pipes (usually PVC or UPVC) are laid underground to carry wastewater to the public sewer or septic tank.
• Sleeve Preparation: Inserting large pipes (sleeves) in concrete beams to pass pipes through them later without breaking the concrete structure.
• Testing: Filling underground pipes with water (water test) to check for any leaks before covering them with soil.

2. Rough-In Phase (Second Fix / Wall Installation)This happens after the brick walls are built but before plastering (الـمـحـارة).

• Chasing and Grooving: Cutting pathways into the brick walls using a mechanical wall chaser.
• Water Supply Lines: Installing hot and cold water pipes (usually green PPR pipes) embedded in the walls for bathrooms and kitchens.
• Drainage Outlets: Installing vertical waste lines, floor drains (Gully traps), and toilet concealed flush tanks.
• Pressure Testing: Locking the pipes and pumping water at high pressure (using a pressure pump) for 24 hours to ensure there are absolutely zero leaks before plastering over them.

3. Trim Phase / Fixture Installation (Final Fix)This takes place after tiling, painting, and finishes are completely done.

• Sanitary Ware Installation: Fitting the toilets, sinks, bathtubs, and showers.
• Accessories: Installing water faucets, mixers, water heaters, and water pumps.
• Final Inspection: Testing the water flow and drainage speed to ensure everything functions perfectly.

• Conduit Laying: Flexible or rigid plastic pipes (PVC conduits) are laid down between the steel reinforcement bars of the ceiling.

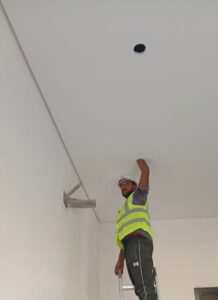

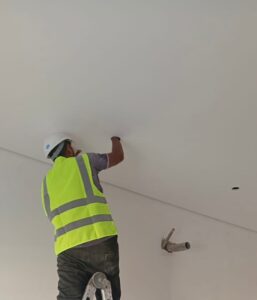

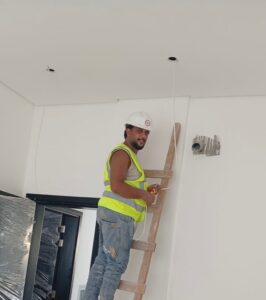

• Junction Boxes: Placing the boxes where ceiling lights, fans, and chandeliers will eventually hang.

2. Wall Rough-In Phase (Second Fix / Walls)This happens after wall brickwork is finished.

• Wall Chasing: Cutting grooves into the brick walls to drop pipes from the ceiling down to the switches and outlets.
• Back Boxes (Switch Boxes): Fixing the metal or plastic boxes (العلب الماجيك) into the walls using cement mortar.

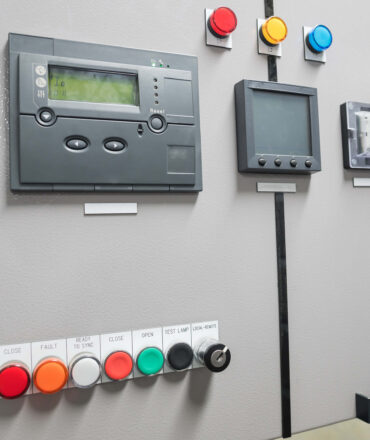

• Distribution Board (DB) Fixing: Mounting the main breaker panel box into the wall.

3. Wire Pulling PhaseThis is done after wall plastering is dry but before final painting.

• Cable Drawing: Using a steel fish tape (السوستة) to pull electrical wires through the embedded conduits.
• Separation: Grouping wires according to their load (Lighting circuits, Power socket circuits, and AC lines).
• Earthing (Grounding): Pulling safety ground wires to protect the house from electrical shocks.

4. Device Installation & Commissioning (Final Fix)This is the very last step after final wall painting.

• Switches & Sockets: Installing the outer frames, switches, power sockets, internet, and TV outlets.

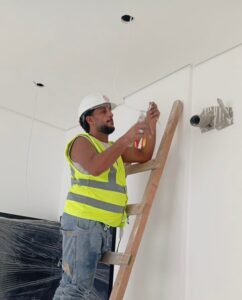

• Lighting Fixtures: Hanging chandeliers, spots, LED strips, and outdoor lights.
• Panel Termination: Connecting the wires inside the main distribution board to the circuit breakers (MCBs).
• Energizing: Turning on the main power supply to test the voltage, polarities, and safety trips.

“Proactively envisioned multimedia based expertise and cross-media growth
strategies. Seamlessly visualize quality intellectual capital without superior.”

– John Henry

Features of Project

Prepare Documentation

Brand Consistency

Quality Control System



Prepare Documentation

Brand Consistency

Quality Control System

Working Process

01
Step

Inspection & Consultation

All the Lorem Ipsum generators on the Internet tend to repeat predefined.
02
Step

Customized Solution

Ority have suffered alteration in some randomised words which don’t look.
03
Step

Installation & Repair

All the Lorem Ipsum generators on the Internet tend to repeat predefined.
04
Step

Testing & Ongoing Support

Handful model sentence structures
generate which looks reasonable.

Project Information

Completely synergize resource taxing relationships via premier.

Client Name

R Holding LLC

Category

MEP ( Electrical & Plumbing )

Start Time

01 Dec, 2025

End Time

Dec , 2026

Budget

$20,00,500

Location

Ajman , uae

Social Links

Completely synergize resource taxing.

Have a
project in
mind?

Let’s Talk

Best Solutions in MEP Solutions & Services

At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi.

At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident, similique sunt in culpa qui officia deserunt mollitia animi, id est laborum et dolorum fuga harum quidem rerum facilis est et expedita distinctio.

“Proactively envisioned multimedia based expertise and cross-media growth
strategies. Seamlessly visualize quality intellectual capital without superior.”

– John Henry

Features of Project

Demoralized voluptatum deleniti atque corrupti dolores quas molestias excepturi sint occaecati.

Prepare Documentation

Brand Consistency

Quality Control System



Prepare Documentation

Brand Consistency

Quality Control System

At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores quas molestias excepturi sint occaecati cupiditate similique.

Working Process

Demoralized voluptatum deleniti atque corrupti dolores quas molestias excepturi sint occaecati.

01
Step

Inspection & Consultation

All the Lorem Ipsum generators on the Internet tend to repeat predefined.
02
Step

Customized Solution

Ority have suffered alteration in some randomised words which don’t look.
03
Step

Installation & Repair

All the Lorem Ipsum generators on the Internet tend to repeat predefined.
04
Step

Testing & Ongoing Support

Handful model sentence structures
generate which looks reasonable.

Other Speciality

At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident, similique sunt in culpa qui officia deserunt mollitia animi.

Project Information

Completely MEP Solutions

Electrical & Plumbing and Low Current Solutions

Client Name

Splash Contractor

Category

MEP Solutions

Start Time

01 Jan, 2026

End Time

30 DEC, 2026

Budget

$200,000

Location

Madam Site , Sharjah , uae

Social Links

Completely synergize resource taxing.

Have a
project in
mind?

Let’s Talk

Best Solutions in MEP

New project add to our portfolio MEP project in Ajman area with our existing customer and cunsultant

– Electrical work
– Plumbing Work

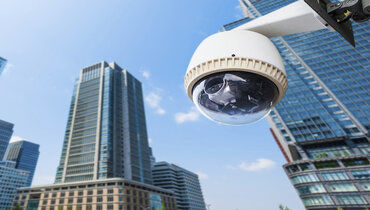

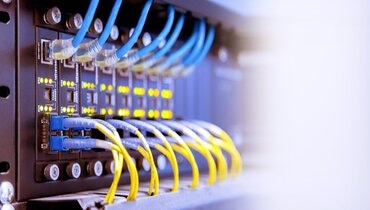

– low current work

DBS SOLUTIONS invites you to experience the next level of electric services – Plumbing and Water Systems and ELV Solutions & Services – From renovation electricians to specialized solutions for businesses

Our team of experts possess specialized skill sets and knowledge to ensure that your electrical needs in UAE are met with precision and professional

– John Henry

Features of Project

Demoralized voluptatum deleniti atque corrupti dolores quas molestias excepturi sint occaecati.

Prepare Documentation

Brand Consistency

Quality Control System



Prepare Documentation

Brand Consistency

Quality Control System

Electrical Systems Our Comprehensive Electrical Services Residential & Commercial and Corporate

• Renovation Electricians

• New Construction

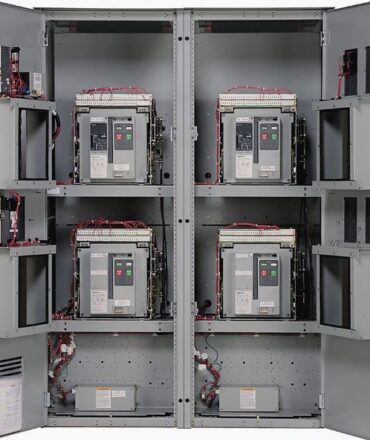

• Electrical Panels

• Knob & Tube Wiring

• Electrical Repair

Plumbing Services

Plumbing involves the installation of pipes and fixtures concealed behind walls or beneath floors in your home, serving the essential function of distributing water and eliminating waste.

• Water supply systems

• Drainage systems

• Heating systems

• Sanitation systems
